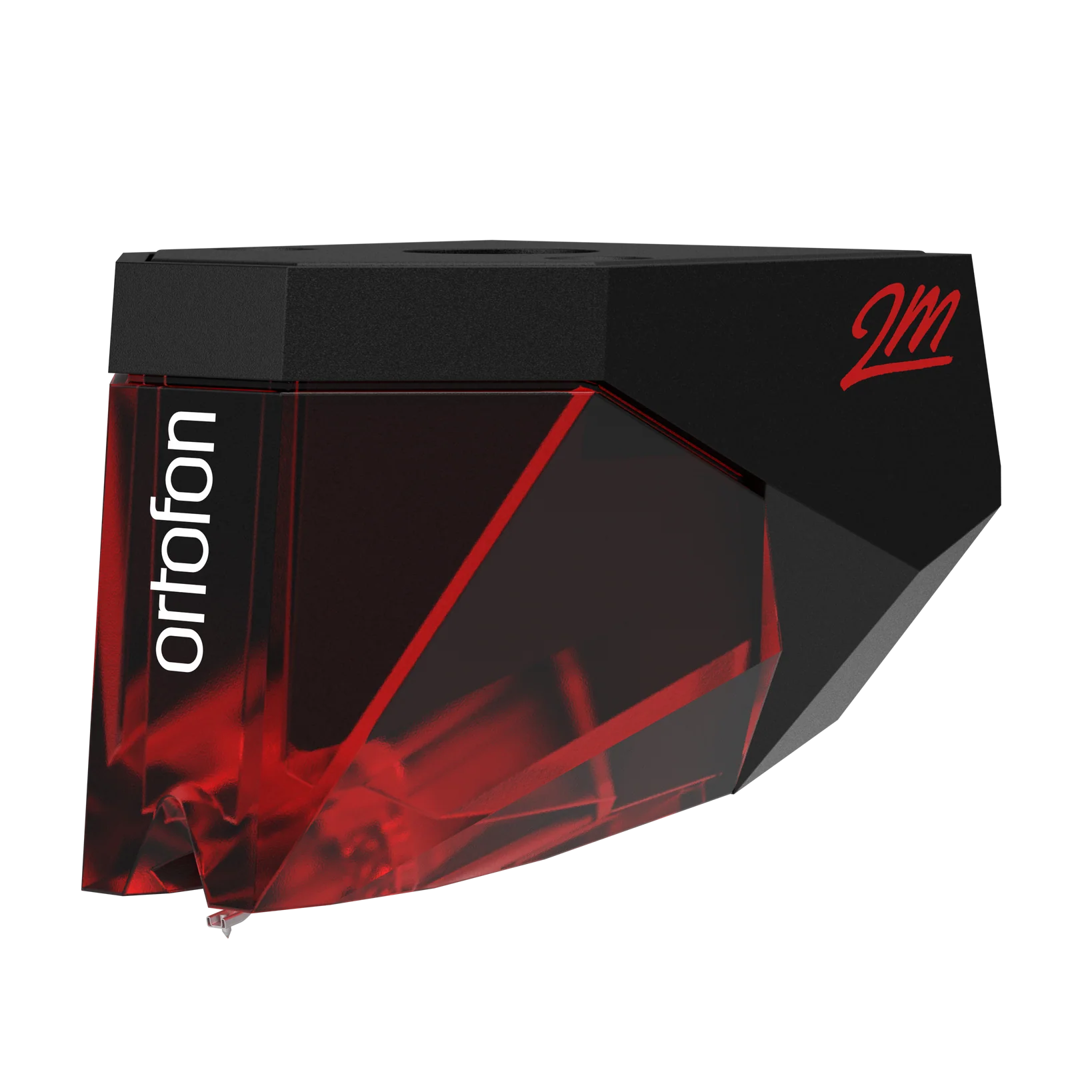

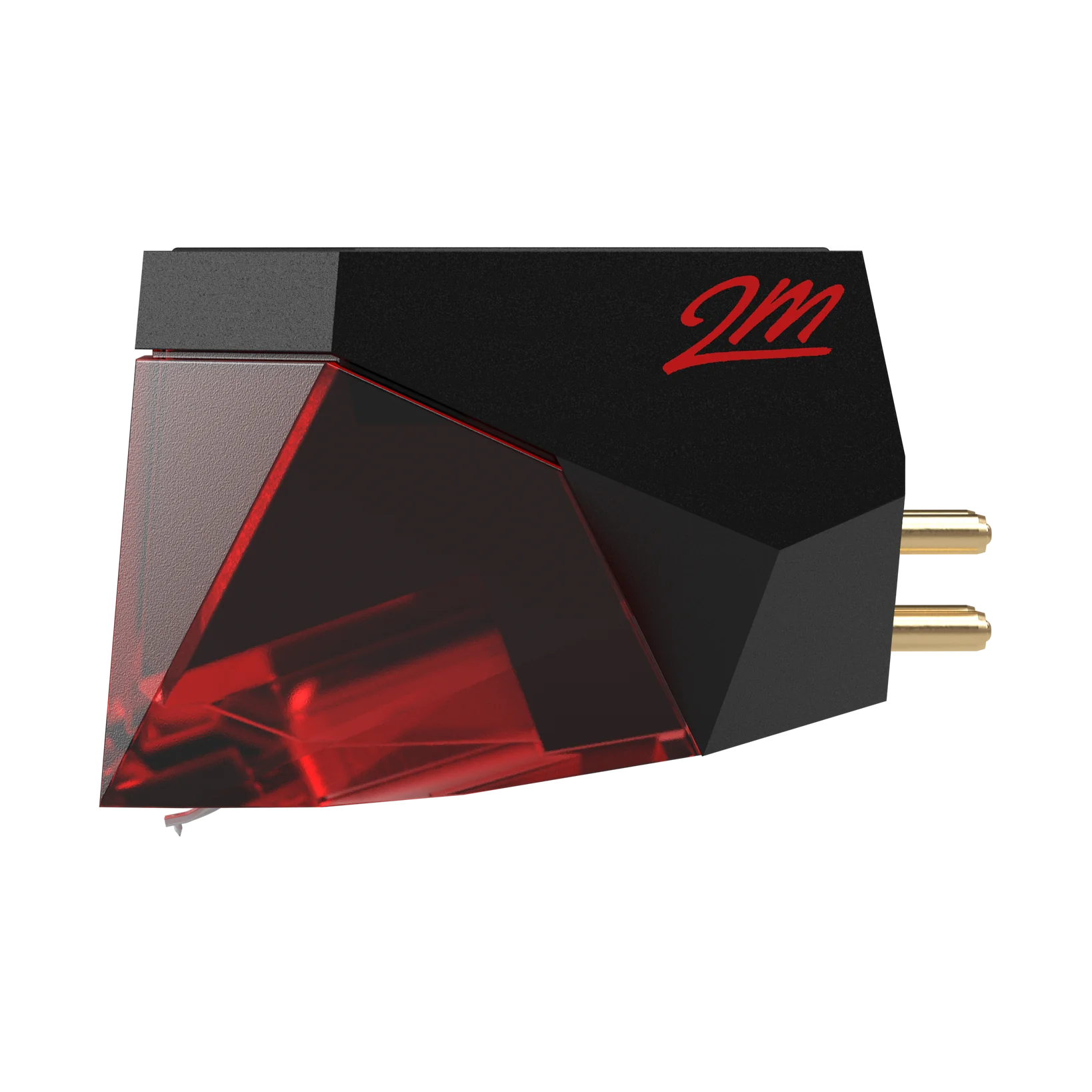

Ortofon 2M Red Cartridge

Description

The Ortofon 2M Red is a popular and highly regarded moving magnet (MM) cartridge that delivers exceptional sound quality for audiophiles and vinyl enthusiasts. Designed by Ortofon, a renowned Danish manufacturer known for its precision and innovation in the field of turntable accessories, the 2M Red strikes an excellent balance between performance and affordability.

Sound Performance:

In terms of sound quality, the Ortofon 2M Red excels in providing a clean, balanced performance. The cartridge offers a slightly warm sound signature, with a detailed midrange, well-defined bass, and smooth highs. It is often praised for its ability to bring out the subtleties of the music without emphasizing any particular frequency range. Whether you’re listening to classic rock, jazz, or classical music, the 2M Red can produce an immersive and engaging experience.

Conclusion:

The Ortofon 2M Red cartridge is an outstanding choice for anyone looking to upgrade their turntable setup without breaking the bank. Its combination of exceptional sound quality, reliable performance, and easy installation makes it one of the best value options in its price range. Ideal for those who appreciate clarity and warmth in their vinyl playback, the Ortofon 2M Red is a solid investment for both beginners and seasoned audiophiles.

Specifications:

• Channel balance at 1 kHz

  1.5 dB

• Output voltage at 1 kHz, 5cm/sec
  5.5 mV
• Channel separation at 1 kHz
  22 dB
• Frequency response 20 Hz – 20 kHz
  + 3 / – 1 dB
• Tracking ability at 315Hz
  70 µm
• Compliance, dynamic, lateral
  20 µm/mN
• Cantilever material
  Aluminium
• Stylus type
  Elliptical
• Stylus tip radius
  r/R 8/18 µm
• Tracking force range
  1.6-2.0 g (16-20 mN)
• Tracking force, recommended
  1.8 g (18 mN)
• Tracking angle
  20°
• Internal impedance, DC resistance
  1.3 kOhm
• Cartridge colour
  Black/Red
• Cartridge weight
  7.2
• Premounted cartridge weight
  16.7 g
• Recommended load resistance
  47 kOhm
• Internal inductance
  700 mH
• Recommended load capacitance
  150-300 pF
